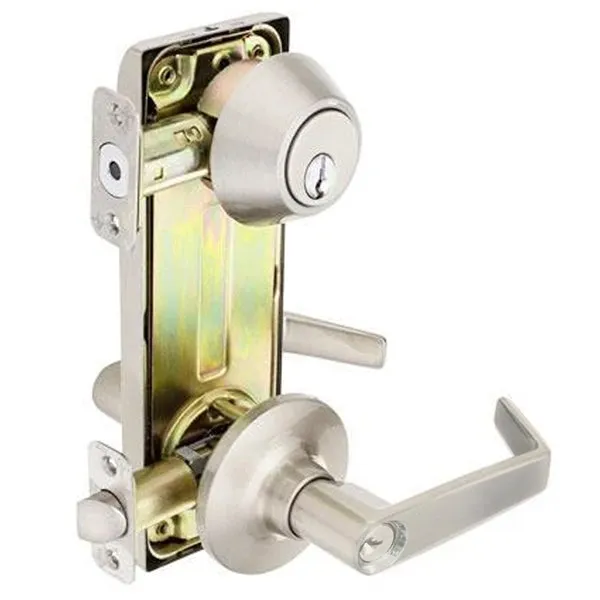

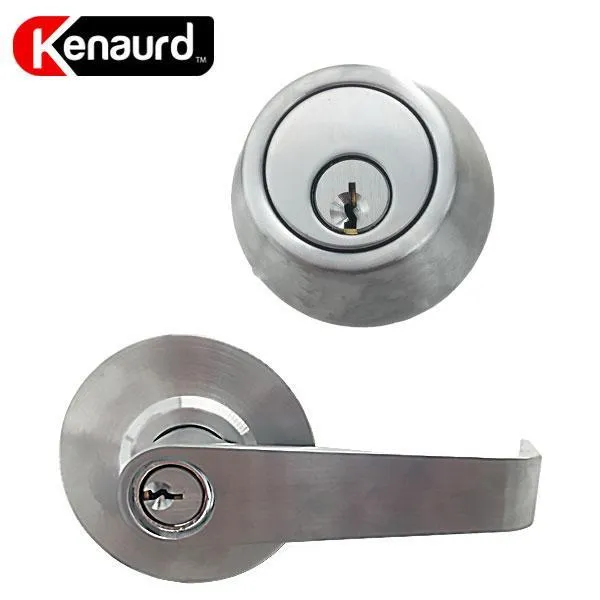

- Deadbolt & Leverset – Entrance
- ANSI/BHMA Certified Grade 2
- UL 3 Hour Fire Rated
- Finish: Stain Chrome – SC – 26D

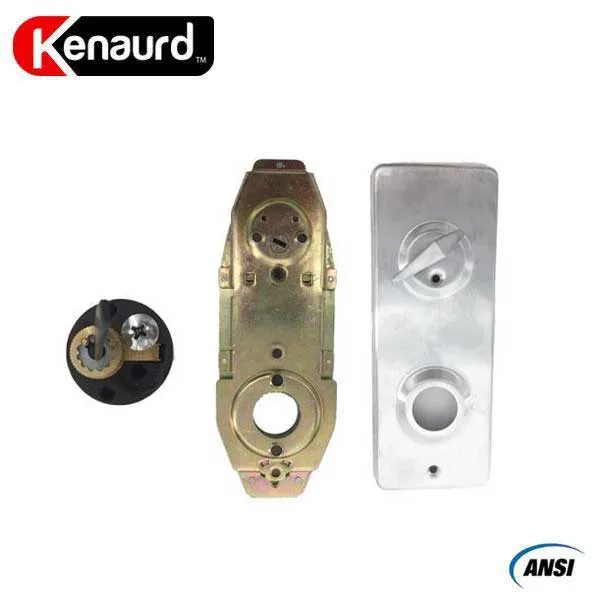

- Clutch Mechnasim
- ADA Ergonomic thumb turn
- 2 Brass Keys Each Set Keyed Alike
- Solid Brass 6-Pin Removable Deadbolt KIK Cylinder
- Reinforced 7/8" dia,1" throw brass / zinc deadbolt with hardened steel core 5/64" thick face plate ANSI Grade 2 Security against kick-in and saw attacks.
- 3" Dia. brass rose. Individual spring on rose plate to prevent lever sag.

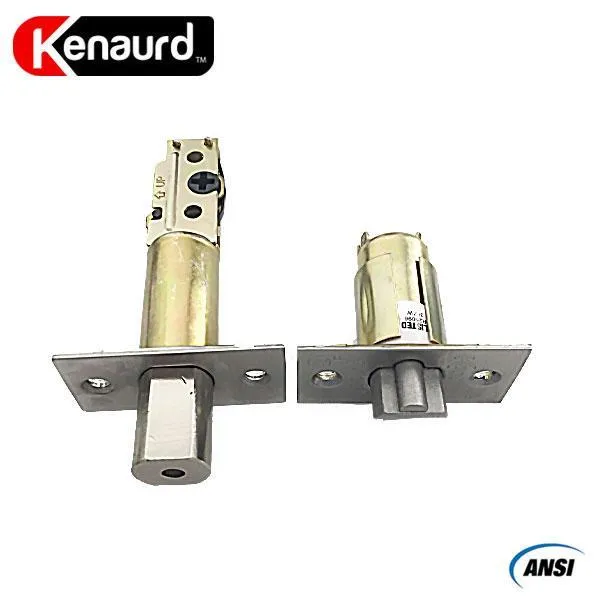

- 1/2" Throw deadlatch completely reversible for flat and beveled door
- 2-3/4” Standard Backest
- Center to center = 4"
- Door Prep: Cross bore 2-1/8", Edge bore 1" , Latch face 1-1/8" x 2-1/4" .
- Backset: 2-3/4" standard.
- Door Thickness: 1-3/8"--2" .
- Cylinder: 5-Pin or 6-Pin removable core . Schlage "C " keyway or Kwikset and other options available.
- Handing: Completely reversible.
- Face plates: 1-1/8"x2-1/4" rounded corner
- Strikes: 2-1/4" full lip rounded corner standard
- Latch: 1/2" throw, stainless steel.
- Bolt: 1" throw, Nickel plated.
- Keyed alike Up to 6 (KA6)
- Limited Lifetime Warranty
Common Lock Functions
